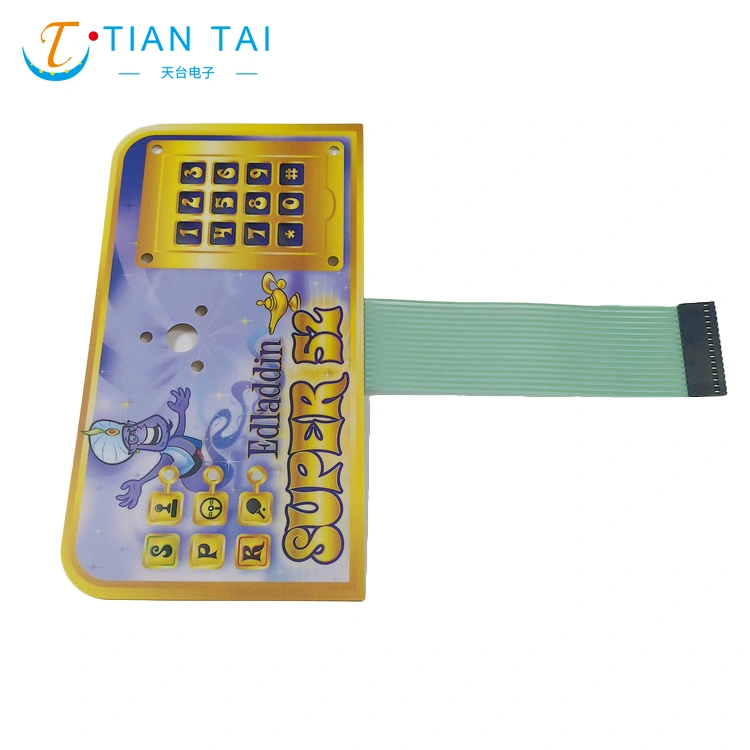

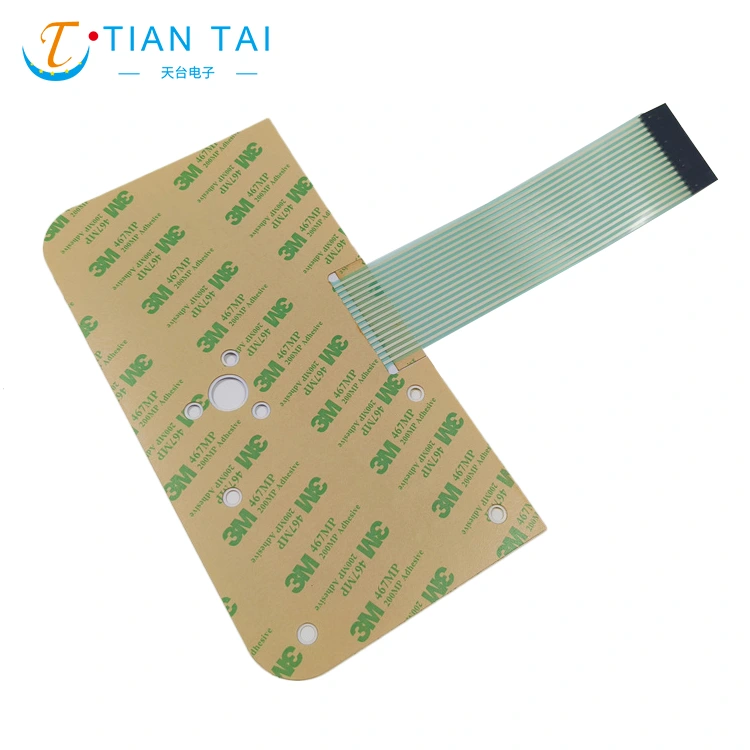

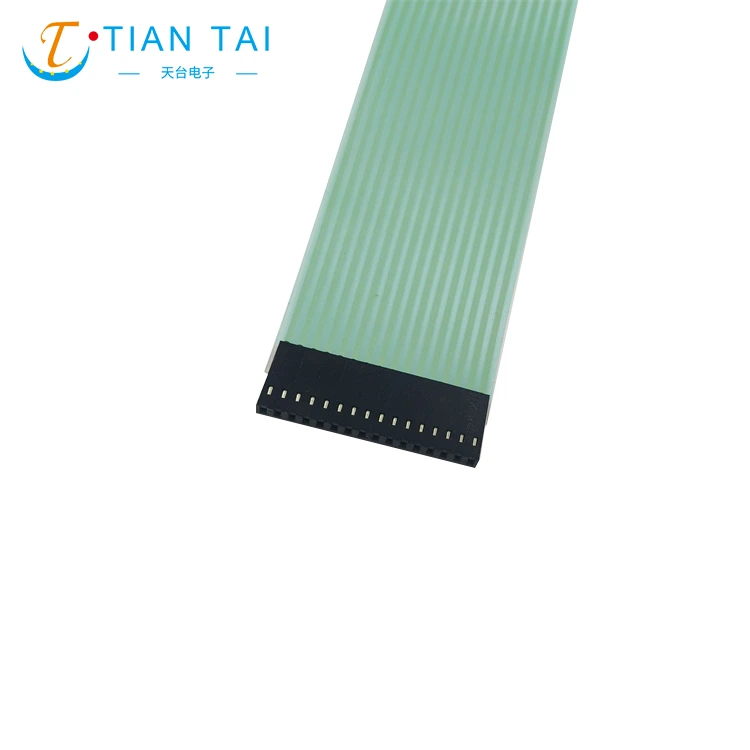

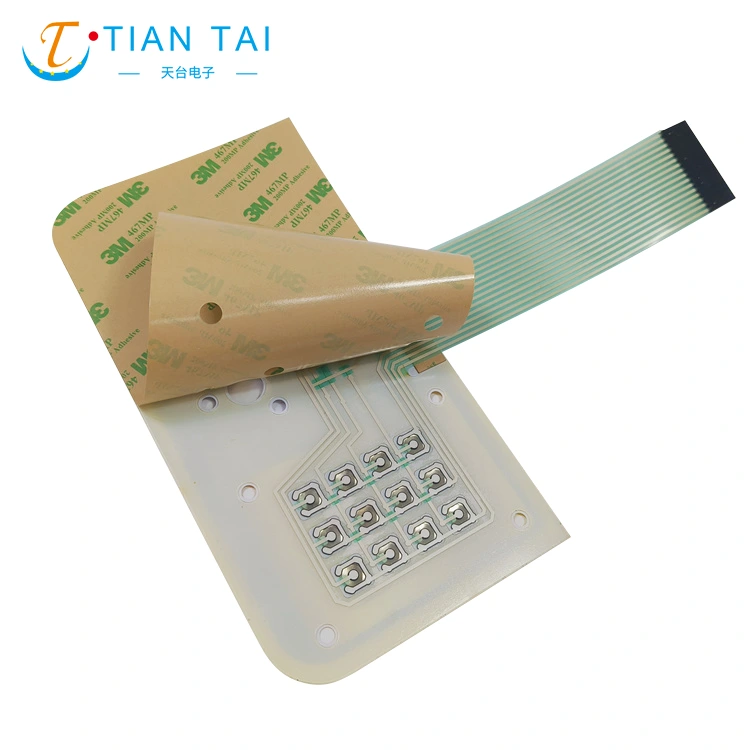

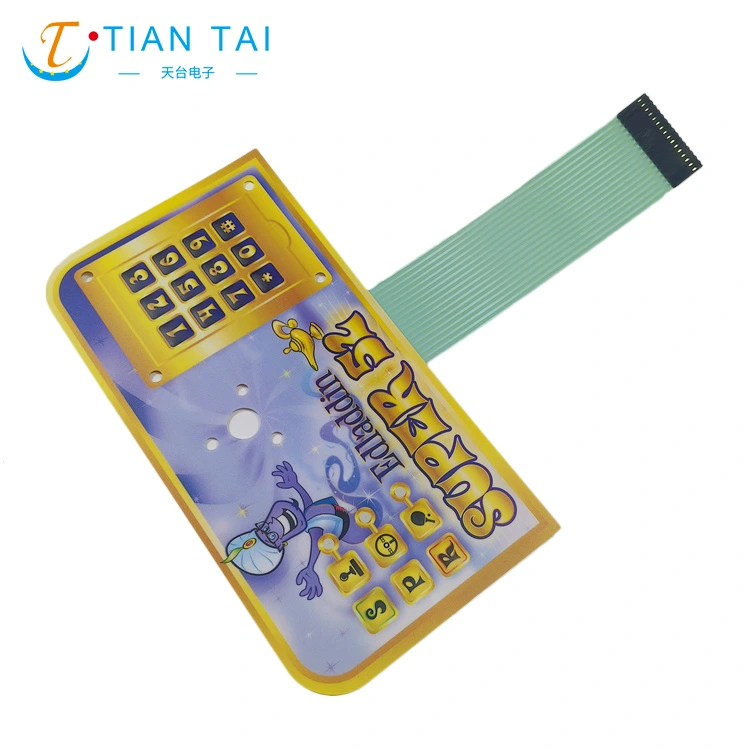

Digital Printing Membrane Switch

Digital printing membrane switch is moisture-proof, water-proof, chemical-proof, and can withstand extreme weather. When mass production, the cost is more affordable than silk printing membrane switch. The key life can reach 1,000,000 times.

Send Inquiry

Product Description

What is Digital printing membrane switch?

There are two commonly used production methods for membrane switch. Screen printing and Digital printing. Both are excellent printing methods, but the two are more or less different. First of all, we explain Digital printing membrane switch, which is more of a method of using AI files to convert digital slave devices to print product patterns. Its biggest feature is that the color can be gradually changed. The production cost will be lower than Screen printing, when the production quantity is higher. Its main feature is the color formed by CMYK, rather than pure pantone or RAL color.

Why not choose Digital Printing membrane switch?

Although Digital printing membrane switch is a popular product in the market, it can occupy the market 100%. There are several very important reasons:

1. Different from the controllability of Screen printing, the color error of each batch of membrane switch produced by digital printing is large.

2. When the batch is small, set up payment is very expensive.

3. Digital printing is not suitable for printing membrane switch circuits.

Material for overlay:

Printing Film	Surface	Thickness(mm)
PET	Glossy(Normal, Hard coat) or texture	0.15/0.18/0.2/0.25 And so on
PC	Glossy(Normal, Hard coat) or texture	As your requested
Glass	Glossy	As your requested
