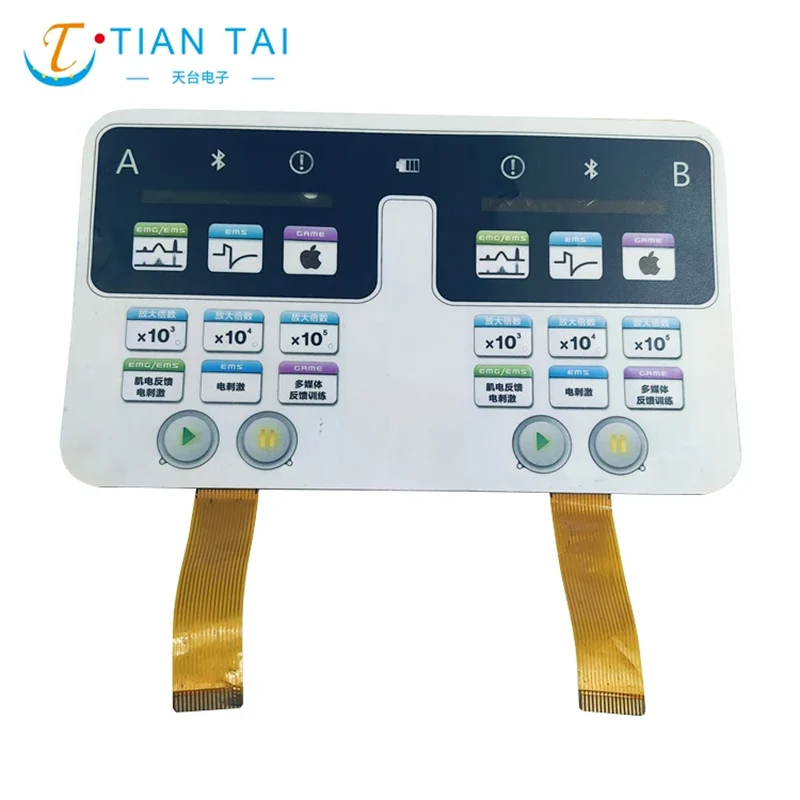

Will High-frequency Key Operation Cause Signal Delay of Membrane Switch Keypad?

The signal response timeliness of membrane switch keypad is jointly restricted by its structural characteristics and the electrical properties of the material. Multi-layer laminated flexible circuits form a coupled transmission system of mechanical-electrical signals in dynamic operation. The transient process of contact point contact involves the matching problem of elastic deformation recovery and charge migration rate. The particle distribution density of the conductive silver paste affects the equivalent resistance of the current path, and the microcrack extension caused by high-frequency pressing increases the probability of electron scattering, causing nonlinear fluctuations in the impedance value.

The dielectric constant frequency characteristics of the polyester substrate determine the phase delay of signal transmission. When the operating frequency of the membrane switch keypad exceeds the critical value, the capacitive load effect will change the slope of the pulse rising edge. The functional relationship between the oxide layer accumulation rate on the surface of the touch pad and the contact pressure directly affects the stability of the on-resistance. It takes time to reconstruct the distribution of the electric field in the multi-layer medium, which constitutes the theoretical delay lower limit of signal establishment.

The difference in material expansion coefficient caused by the heat accumulation effect may cause micron-level displacement offset and change the effective alignment accuracy of the contact. The growth rate of silver migration under DC bias voltage may shorten the insulation failure time of adjacent lines. These dynamically changing parameters work together to make the signal delay of membrane switch keypad in high-frequency operation environment present probabilistic characteristics rather than an absolute inevitable phenomenon.

The optimization path includes using nano silver wires to improve the redundancy of the conductive network, designing gradient modulus structures to disperse stress concentration, and reducing signal reflection loss through impedance matching. These measures can improve the timing stability of membrane switch keypad in high-frequency usage scenarios, but cannot completely eliminate the inherent delay characteristics caused by the physical limitations of the material.
